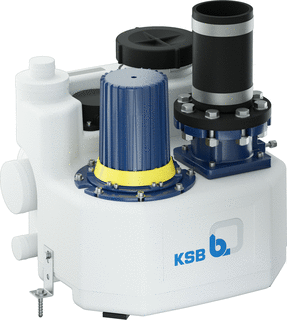

KSB Mini-Compacta vuilwaterpompunit U1.060 D 400V 29131500

3.565,96 Incl BTW
Nog 3 Op voorraad
Volgende werkdag in huis

KSB Mini-Compacta vuilwaterpompunit U1.060 D 400V 29131500...

3.565,96
  • Voor 17:30u besteld, volgende werkdag bezorgd
  • < dan €50: €9,95, < dan €125: €7,25
  • Exclusief dealer van Catalano Sanitair
  • Maak gebruik van onze kennis
  • 24/5 bereikbaar
Beschrijving Ksb Mini-Compacta vuilwaterpompunit, geschikt voor fecaliën, reservoir kunststof, nom. debiet 15m³/h, opvoerhoogte bij nom. debiet 70kPa, kwaliteitsklasse reservoir PE (Polyetheen), pomphuis kunststof, kwaliteitsklasse pomphuis PE-40, opstelling achter toiletpot, inhoud reservoir 60L, 1 pompen,
Specificaties
Opstelling achter toiletpotJ
VersnijdendN
Geschikt voor buiteninstallatieN
Met alarmfunctieJ
Max. opvoerhoogte11.9 m
Aansluiting inlaatzijdeBuiseind
Max. debiet26.5 m³/h
Reservoir-inhoud60 l
Aantal pompen1
Met terugslagklepJ
Nom. diameter aansluiting inlaatzijdeOverig
AlarmuitgangJ
Breedte510 mm
Nom. diameter aansluiting perszijdeDN 100
Aantal inlaatpoorten4
Afgegeven motorvermogen (P2)750 W
Kwaliteitsklasse pomphuisPE-40
Aansluitstandaard inlaatzijdeOverig
Diepte510 mm
ExplosieveiligN
Materiaal pomphuisOverig
Max. werkdruk2.5 bar
Met ontluchtingJ
Volumestroom (BEP)15 m³/h
Aansluiting perszijdeFlens
Aantal fasen3
Beschermingsgraad (IP)IP68
CommunicatieGeen
Druktrap flens aansluiting inlaatzijdeOverig
Druktrap flens aansluiting perszijdePN 6
Elektrische aansluitingSnoer met stekker
FlensvormRond
Frequentie50 Hz
Aansluitstandaard perszijdeEN 1092-1
Geschikt voor fecaliënJ
Materiaal waaier / pompwielOverig
Kwaliteitsklasse materiaal waaierOverig
Materiaal reservoirOverig
Kwaliteitsklasse reservoirPE-40
Kabellengte1.5 m
Nom. stroom2.1 A
Opgenomen motorvermogen (P1)1020 W
Nom. bedrijfsmodusS3 50 % 1 min
Isolatieklasse volgens IECF
Toerental2900 1/min
Radiostandaard BluetoothN
Radiostandaard WLAN 802.11N
Standaard radio 5GN
Interface signaal 0-10 V / 2-10 VN
Interface signaal 0-20 mA / 4-20 mAN
Interface signaal PT100 / PT1000 / PTCN
Interface pulsbreedtemodulatie (PWM)N
Interface pulstellerN
Potentiaalvrij schakelcontactJ
Met communicatie-interface RS-485N
Met communicatie-interface RS-232N
Ondersteunt protocol voor EtherNet/IPN
Ondersteunt protocol voor EIB/KNXN
Ondersteunt protocol voor PROFIBUSN
Ondersteunt protocol voor PROFINET ION
Ondersteunt protocol voor CAN / CANOpenN
Ondersteunt protocol voor Modbus TCPN
Ondersteunt protocol voor Modbus RTUN
Ondersteunt protocol voor BACnet MS / TPN
Ondersteunt protocol voor BACnet IPN
Ondersteunt protocol voor LON / LONWorksN
Ondersteunt protocol voor LIN BusN
Uitwendige buisdiameter aansluiting inlaatzijde100 mm
Uitwendige buisdiameter aansluiting perszijde80 mm
Hoogte455 mm
Max. afmeting vaste delen40 mm
OpmerkingVrije doorlaat
Extra info
GTIN Nummer: 4031932091381
Aantal gebruikseenheden: 1.00
Gebruikseenheid: PCE
Artikelcode leverancier: U1.060D
Productklasse: Vuilwaterpompunit
Levertijd: Voorraad
Diepte: 510 mm
Breedte: 510 mm
Hoogte: 455 mm
Elektrische aansluiting: Snoer met stekker
Uitvoering: Vrije doorlaat
